HYNGE Swivel Top & Swivel Bottom Rotating Mechanism | Space Saving Solution
HYNGEUP4
Upgrade your space with the HYNGE Swivel Top or Swivel Bottom - Smart, space-saving solutions for modern living.
Effortless Rotation for Work Desks and Furniture - Maximise Space with Swivel Technology!
The HYNGE Swivel Top and Swivel Bottom mechanisms are innovative solutions that allow seamless 90° rotation of work desks, benches, or furniture components. Designed for kitchens, home offices, and compact spaces, these smart mechanisms enable flexible and temporary workspace extensions without permanent structural changes.

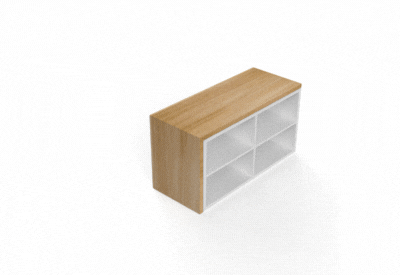

Swivel Top: Rotates a desk or bench positioned on top of a stationary element (e.g. shelves, cupboards, or sideboards).
Swivel Bottom: Rotates a furniture part, desk, or shelf positioned below a stationary surface.
Why Choose Swivel?:
- Space-Saving and Functional: Ideal for compact kitchens, home offices, and modular furniture setups.
- Smooth 90° Rotation: Expands workspace when needed and retracts effortlessly when not in use.
- Durable & Reliable: Steel and plastic construction ensuring long-term stability.
- Multiple Sizes Available: Choose between large (4070) and small (3040) mechanisms for different applications.
- Easy Installation: Designed for a milled fit with provided screws and felt spacers.
Swivel Top - Sizes and Technical Specifications:
Large Table Mechanism:
- Applicable Desk Width: 480 - 700mm
- Minimum Furniture Thickness: 18mm
- Milling Depth for Installation: 13mm
- Required Clearing Distance (One Side): 240mm
- Gap Between Furniture & Desk: 9.3mm
- Material: Steel and Plastic
Small Table Mechanism:
- Applicable Desk Width: 360 - 460mm
- Minimum Furniture Thickness: 18mm
- Milling Depth for Installation: 13mm
- Required Clearing Distance (One Side): 150mm
- Gap Between Furniture & Desk: 9.3mm
- Material: Steel and Plastic
What's Included?
- Main Mechanism (Large or Small)
- Locking Plate
- 15x Wood Screws (D 5 X L 20mm)
- 4x Felt Spacers
Swivel Bottom - Sizes and Technical Specifications:
Large Furniture Mechanism:
- Applicable Desk Width: 480 - 700mm
- Minimum Furniture Thickness: 18mm
- Milling Depth for Installation: 13mm
- Required Clearing Distance (One Side): 240mm
- Gap Between Furniture & Desk: 9.3mm
- Material: Steel and Plastic
Small Furniture Mechanism:
- Applicable Desk Width: 360 - 460mm
- Minimum Furniture Thickness: 18mm
- Milling Depth for Installation: 13mm
- Required Clearing Distance (One Side): 150mm
- Gap Between Furniture & Desk: 9.3mm
- Material: Steel and Plastic
What's Included?
- Main Mechanism (Large or Small)
- 6x Wood Screws (D 5 X L 20mm)
- 2x Felt Spacers
